제품 상세 정보:

원래 장소: 중국
브랜드 이름: GrowBetter, 1/3, OEM
인증: CE ROHS FCC
모델 번호: BRI-Q35B-107

결제 및 배송 조건:

최소 주문 수량: 1
가격: Negotiable
포장 세부 사항: 이너 박스, 수출 통, OEM
배달 시간: PO를 위한 15-35 일인 천송을 위한 5-7 일
지불 조건: 30% 저장고, 배달 전에 70%
공급 능력: 달 당 10000 세트
최고의 가격 접촉

상세 정보

재료: 알루미늄 방식: 전자적입니다
용법: 에이치아이디, 고휘도 방전 일치된 관: MH, CMH, CDM
THD: <10% PFC: >0.95
하이 라이트:

35W 디지털 안정기는 숨었습니다

,

0.95 PFC 디지털 안정기는 숨었습니다

,

CDM 고압 나트륨 광 밸러스트

제품 설명

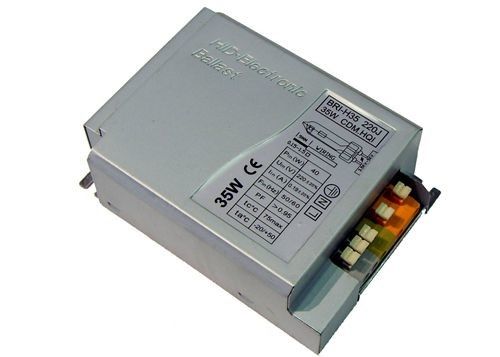

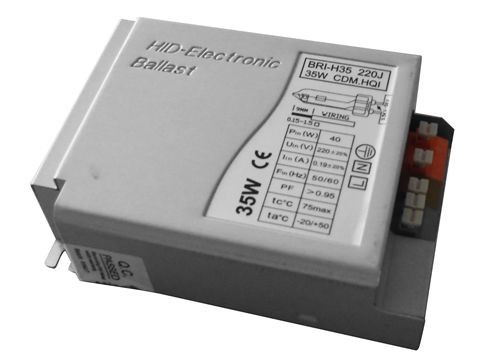

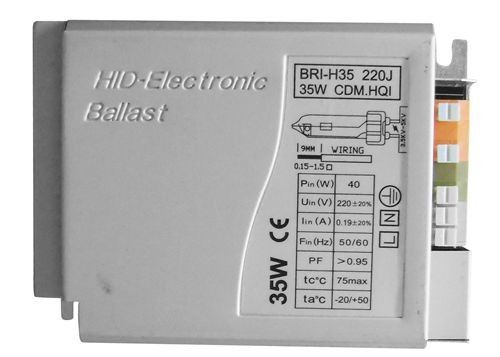

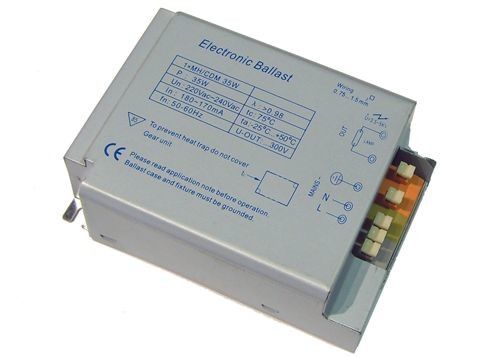

35W Digital Ballast HID Ceramic Metal Halide Lamp Ballast High Pressure sodium Lamp electronic ballast





Advantages and characteristics

1, energy saving

The ballast itself consumes less power, saves 40% more power than an inductive ballast, increases light efficiency by 12%, and has a ballast power factor greater than 0.96.



2, constant power, extend the life of the light source

The light source starts quickly without flicker, so that the color temperature and brightness of the light source do not change with voltage fluctuations. The constant low-frequency operating current output will not produce acoustic resonance phenomenon, reduce the damage to the lamp, and extend the life of the light source by 30%.



3, environmental protection, low noise and no pollution

Low harmonic content, no interference with the power grid and other equipment, low noise and no radiation.



4, to achieve intelligent control

With over-voltage, over-current, open circuit, short circuit, temperature and many other protection features, fire safety is guaranteed. Dimmable and smart control.



5, for a wide range of ambient temperatures

Use a wide range of ambient temperature, low temperature rise, -25 C ~ +55 C



Specification Model BRI-Q35B-107
Material Aluminum
Dimension 107*77*31mm
Net Weight 280g
Style Electronic
Usage HID, High Intensity Discharge
Matched Bulb MH, CMH, CDM
Technical Parameters Input Voltage 95~270VAC
Input Current 0.44A~0.16A
Input Power 40W±2
Input Frequency 50Hz~60Hz
Surge Current <20A
Power Factor >0.95
THD <10%
Input Insurance 250V/2.5A
Ouput Power 35W±2
Lamp Voltage 75V~150V
Output Frequency 130Hz±10Hz
Crest Factor <1.7
Open Circuit Protection >300V
Ignition [striking] voltage <5KV
Short-circuit protection YES
Open-circuit protection YES
Ignition failure protection YES
Thermal protection YES
Lamp failure protection YES
Low-voltage protection YES
Ballast to Lamp distance <5m
Working temperature -25℃~+50℃
Min starting temperature -25℃
EMC EN55015,FCC18C
Support dimming NO
Dimming setting //
Packaging Inner Box Size 116*82*34mm
Carton Package 37*25*26.5 cm
Package Qty. 60pcs/carton
Package G.W. 17.2KG
Package CBM
