상세 정보 |
|||
| 램프 전원: | 100 w | 램프 유형: | 에이치아이디, 메탈 할라이드 램프 |
|---|---|---|---|
| 램프 기초: | 두배는 와이어 R7XS로 끝났습니다 | 작업 전압: | 110 Ｖ, 220 Ｖ |
| 색 온도: | 4000K | 빛 유지: | 95% |
| 전원 공급기: | 전자식 안정기 | 에너지 절약: | 정상적인 것 보다 50%는 가로등을 숨겼습니다 |
| 체색: | 푸르고 회색이고 주문 제작됩니다 | ||
| 하이 라이트: | 50Hz 조명 기구 Accessories,96000lm 조명 기구 Accessories,100W 두배 종결한 램프 |
||
제품 설명

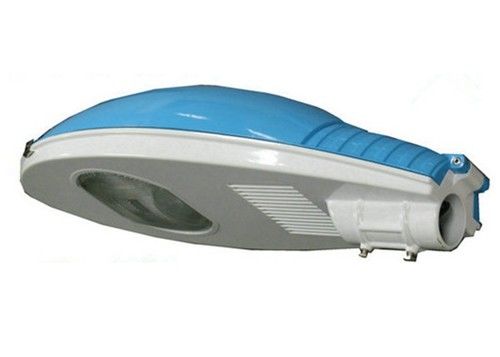

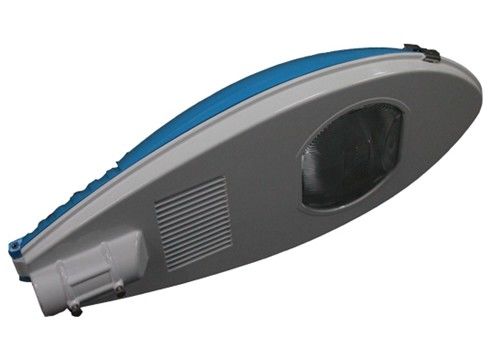

High Efficient Energy Saving Street Lights Blue Whale 100W Street Light metal halide road lamp
Specification
| Product Name: | Blue Whale 100W MH Street Light |
| Model Number: | SLD-R-MH100-SS8W |
| Lamp Power: | 100W |
| Total Power Consumption: | 112W |
| Input Voltage: | AC 165-265V / AC90-140V |
| Input Frequency: | 50Hz / 60Hz |
| Current: | 0.52 A |
| Power Factor: | ≥ 0.98 |
| Color Temperature: | 4000 K |
| Color Rendering Index: | ≥ 80Ra |
| Luminous Flux: | 96,000 lm |
| Luminous Efficiency: | ≥ 80 lm/w |
| Lumen Maintenance: | 95% (10,000 hrs) |
| Average Life: | 15,000 hrs |
| Ballast Type: | Dimmable electronic ballast |
| Lighting Bulbs & Tube: | Double-Ended high efficiency MH |
| Lampshade Material: | Die Casting Aluminum |
| Gasket: | Silicone Rubber |
| Lamp Cover / Diffuser: | Heat-resistant tempered glass |
| Reflector: | High reflective glass reflector |
| Lamp Base: | R7XS |
| Arm Diameter: | 60 mm |
| Protection: | IP65 |
| Popular Surface Color: | Blue, Grey, OEM |
| Install Height | 10 - 12 meters |
| Electrical class: | Class II |
| Ambient Temperature: | -35℃~ 50℃ |
| Ambient Humidity: | 10% ~ 95% |
| Certification | CQC, CE, ROHS |
| Application: | Outdoor Street Lighting, Highway |
| Energy Saving Comparison: | Up to 50% power saving, 10% more illuminance compared to traditional metal halide 150W street light; |
| Dimensions (L x W x H): | 830 x 345 x 180 mm |
| Net Weight: | 8.4 kg |
| Packaging Carton Size: | 83 x 40 x 23 cm |
| Packaging Qty. per carton: | 1 piece per carton |
| Packaging Gross Weight: | 9.4 kg |
| Packaging CBM: | 0.076 |
Key Features
1. Obvious energy saving effect, up to 50% electricity saving compared with the ordinary street lamp;
2. Convenient and quick installation -- no need to modify the line, and can be replaced directly with the original street lamp; The standard horizontal arm of the 60mm standard is installed directly;
3. Long service life -- over 24,000 hours;
4. Safe and convenient operation, anti-corrosion, shockproof, waterproof, lightning protection, dust proof and other protection functions.
Advantages
- Up to 50% energy saving compared to normal hid street lights.
- Unique constant current constant voltage technology: when the voltage input of 165v-265v, the working power and brightness are basically unchanged; It avoids the premature aging caused by the overload of the light source due to the unstable voltage, which is to extend the service life of the light source.
- the lamp light source service lifetime more than 24,000 hours, 2- 3 times of normal sodium lamp life, save the light bulb cost and maintenance cost adequately;
- High light utilization: unique optical design, the luminaire efficiency can reach more than 85%;
- Wide range of rectangular irradiation street lamps, evenly light distribution;
- anti-glare: the glass mask is used to project the reflected light evenly and evenly into the effective region, with the anti-glare effect.
- High power factor > 0.98, greatly reduces line loss.
- Exquisite and beautiful design, the shell is made of die cast aluminum, the product is light weight and easy to install and maintain; meanwhile, mini size effectively reducing wind resistance;
- Solar Power Version Available (according to customer requirements)
- Intelligent Centralized Control (according to customer requirements)
Main Application
It is mainly applicable to outdoor places such as highways, urban roads, general highways, roads, community roads, etc.
