상세 정보 |
|||
| 입력 볼트: | 5V DC | 타입: | 주제어기, 조명 컨트롤러, |
|---|---|---|---|
| 방법을 운영하세요: | LED 터치스크린 | 수로: | 이중 채널 |
| 지원: | 온습도 센서, 과열보호, 안전 장치, | 애플리케이션: | 하프스 조명 시설, 온실 조명 |
| 하이 라이트: | 습도 센서 0 10V 제어기,제어기 315W 0 10V명,CMH HPS 광선 제어 |
||
제품 설명

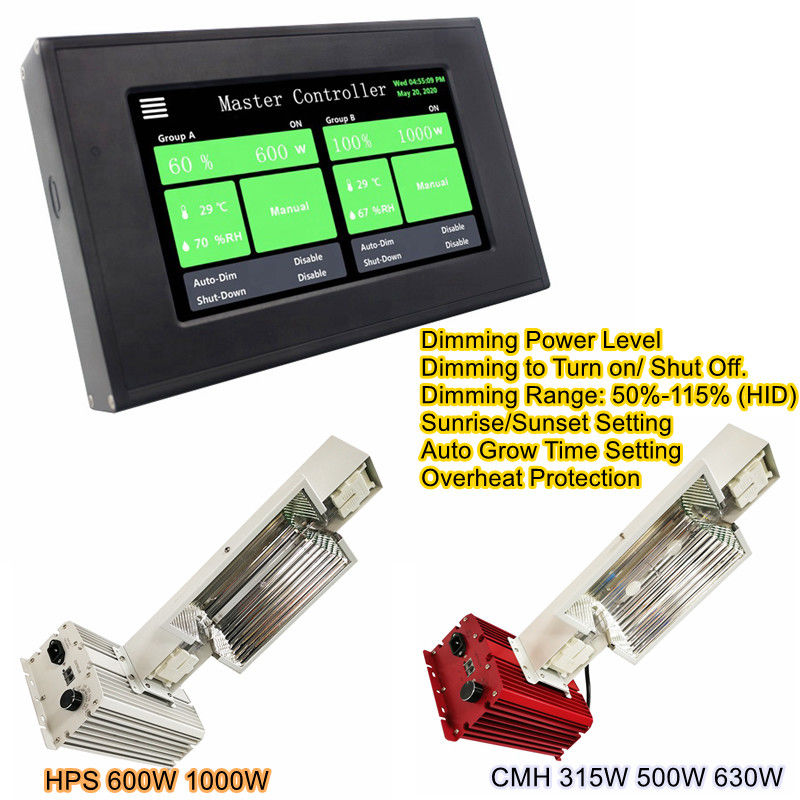

0-10V Dimming Smart CMH/HPS Grow Light Controller Systerm Indoor Plant Grow Lighting Controller
Master Controller Gen3 Compatable with
GrowBetter Air PAR Plus CMH Grow Light System 315W
GrowBetter Air PAR Plus CMH Grow Light System 500W
GrowBetter Air PAR Plus CMH Grow Light System 630W
GrowBetter Air PAR Plus CMH Grow Light System 630W Double Ended
GrowBetter Air Pro HPS Grow Light System 1000W
GrowBetter Air Pro HPS Grow Light System 600W
The Gen3 Smart Lighting Controller is designed to provide wired control to two lighting groups in a greenhouse. You can control up to 80 lights per group. Programmable dual channels allowing to control two separates grow area or grow rooms.
The controller uses 0-10V adjustable DC voltage to control ballast output power and switch on/off the ballast.
Master Controller Gen3 operates on a 12-hour or 24-hour time cycle and support to simulate sunrise and sunset cycle from 10-60 minutes. Sunrise/Sunset settings allow you to slowly dim on and off your lights mimicking the natural light cycle.
Each of the two-lighting group channels has a room overheat protection function that can be set as needed. The Master Controller Gen 3 has safety features to dim or shut off lights to avoid plants injured (if any) when grow area becomes too hot or HVAC failure to work.

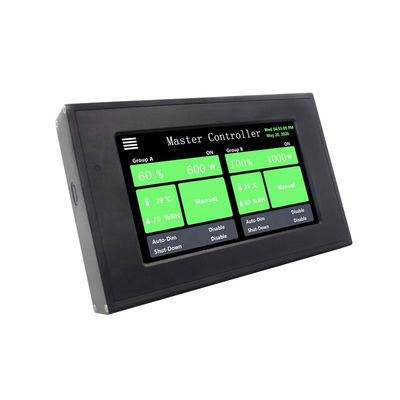

You can use the LED touchscreen to easily view and modify the current settings for each channel.
Moreover, the Smart Lighting Controller is portable, easily operated and installed.
- Dimming Power Level
- Dimming to Turn on/ Shut Off.
- Dimming Range: 50%-115% (HID)
- Sunrise/Sunset Setting
- Auto-Dim Setting
- Auto shutdown at temperature, time, and humidity setting
- Overheat Protection
- LED Touch Screen
- No need for a switchboard
- Easy and safe installation (low voltage device)
- Protected against short circuit.
- Double temperature safety feature
- Control up to 160 lights.
- Show output as W or %

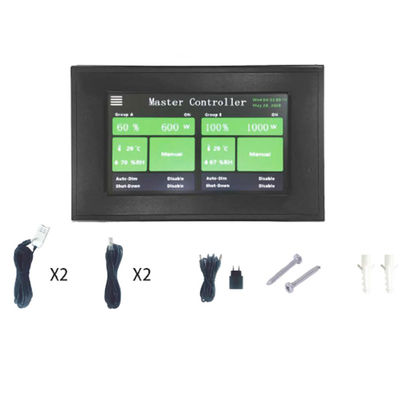

- Temperature and humidity sensors, RJ 14cables included.
Package Includes
